Broom Infield Groomer by Heying Company

Infield Groomers - Synthetic & Natural Turf Groomers - Golf Green Groomers - Driveway Groomers Manufactured Here! Made in USA


			Broom Infield Groomer BG72. Multi Purpose Groomer.

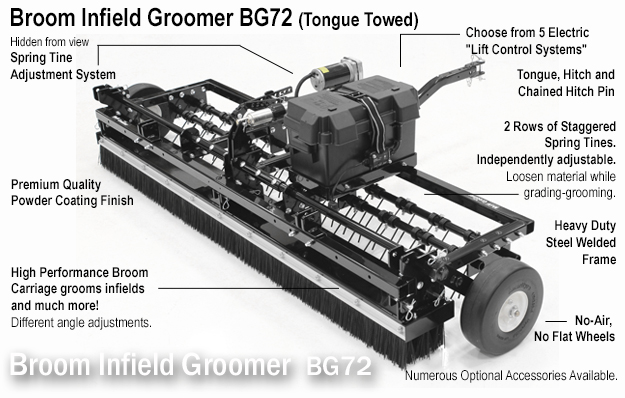

	BG72 Infield Groomer Standard Equipment: Tongue and Hitch Combo, Two Rows of Independently Adjustable Spring Tines, Welded Frame with No-Air-No-Flat Wheels (never need air), and our exclusive High Performance 6-Brush Broom Carriage. You choose from 5 Model Numbers when choosing a groomer. Each model number represents a specific "Operator Lift Control System" and they all include same "standard equipment". See Catalog & "Factory Direct Pricing".

	Want to groom infields and turf with the same machine? See the "HYbrid HY72" machine. It converts from an infield groomer to a turf groomer in a few minutes, without tools.














	Broom (or Brush) Groomers have been used on infields for decades. None is easier to use or more effective than our BG72 Broom Groomer. Effective on infields and useful on many other surfaces, such as, turf, gravel or rock driveways, yards, trails and more. · High Performance Broom Carriage · Cuts High Areas and Fills Low Areas · Maintains Safer Playing Surface · Spring Tines Break up hard infields · Deters Water Puddling · Works on all infield materials · Reduces Need for Hand Raking · Heavy Duty Steel Construction · Powder Coated finish · Capable of high speed grooming · Pull with variety of towing machines · No tools needed to adjust engineering · Easy to Use · Affordable · Saves Labor


	Pricing Effective 1-1-23

Export Overseas	Factory US	Model Numbers	Model Numbers represent the different "Operator Lift Control Systems that are available" (WR, SG, PW, SB and HW). All have the same standard equipment/parts. See catalog for more details.
5,312.00	4,250.00	BG72-WR	WR = Wireless Remote Control with 12v Battery on Groomer. Wireless Control. Does not use tow machine battery.
5,313.00	4,250.00	BG72-SG	SG = Corded Switch Box System with 12v Battery on Groomer. Does not use tow machine battery. Hand held corded switch.
4,812.00	3,850.00	BG72-PW	PW = Portable Wireless Remote Control. Uses 12V battery of your tow machine. WR System at lower cost!
4,812.00	3,850.00	BG72-SB	SB = Corded Switch Box System. Uses 12V battery of your tow machine. Has hand held switch control (and 2 Extension Wires).
4,812.00	3,850.00	BG72-HW	HW = Hard Wired Control System. Wired direct into your tow machine. Dash Mounted Rocker Switch and Complete Wiring Pkg.
Export Overseas	Factory US	Accessory Numbers	Optional Accessories / Attachments Please refer to the catalog, link shown above, for details on all optional accessories.
844.00	675.00	MGDM-8436	Drag Mat 84" wide x 36" deep, with our exclusive Rack Mount System that carries and pulls the drag mat
293.00	235.00	MGRK-4200	Drag Mat Rack Only (customer uses their own drag mat with our special carrier rack)
525.00	420.00	MGGB-7200	Metal LevelFlo1 Leveling Implement, Metal 72" Wide. Effective on Infields for grading and leveling
525.00	420.00	MGRM-7200	Rubber Mat 72" Wide (use instead of Drag Mat as rear attachment)
900.00	720.00	MGMT-7200	Magnet 72" Wide (Complete with N52 Rare Earth Neodymium Magnets - strongest available) Optimal 3rd rear attachment for Turf
212.00	170.00	MGCP-1875	Ball Coupler Hitch, 1-7/8"
212.00	170.00	MGCP-2000	Ball Coupler Hitch, 2.00"
94.00	75.00	AL-E-098	Additional "WR" Wireless Transmitter Also consider ALSB-1212 or ALPW-1212 as a backup operator lift system.
350.00	280.00	AL-E-552	"HW" Add'l Tow Machine Wiring Package When a customer chooses the "HW" Lift System they might want to install wiring on more than one tow machine to operate the groomer. This option is a wiring package that can be installed on a second tow machine.
425.00	340.00	3 Choices	Add a Backup Electric Control System. 3 Choices to choose from. SB, PW or SG A "backup control system" can be used to bypass the original control system in the case of a dead battery, misplaced transmitter, broken wire, etc. If you simply have to groom, no matter what, then onsider one of these backup systems. See catalog for more details or each system.


		We offer more "Operator Lift Control" choices than any other manufacturer. See Catalog for Details.

			Do You Have Sports Turf and Infield Grooming Needs? See our HyBrid Groomer HY72. It includes attachments for grooming Turf and Infields. Converts in 60 seconds.
